7 Colors RGB 5050 LED Board 5V with DIP Switch
The LED is suitable for light DIY on mutirotor, airplane, helicopter, RC car etc.
This LED adopts 3 pieces of RGB 5050 lamp beads, with DIP switch on board. According to toggle different switch combination, the LED can switch among 7 colors.
Working Voltage: 4-6V DC
1. The parcel comes with a 30cm black and red power wire. User can cut it to the proper length according to real use.
2. Pay attention to the “+” and “-” and insulation
3. Toggle the switch on to different channel to choose 7 color
4. We suggest use double side tape to paste the LED lights on frame
5. 6. For the 5V version, you can use the 5V receiver or separate 5V BEC to power it.

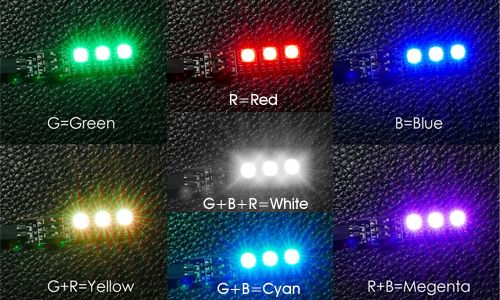

When the output is 5V, the power and current of the LED:
B ON = Blue 0.35W,
R ON = Red 0.35W
G ON = Green 0.35W
B + R ON = Purple 0.70W
B + G ON = Cyan 0.70W
R + G ON = Yellow 0.70W
B + R+G ON = White 1.05W
